Cabinet Types
14 different cabinet types, endless possibilities…
CabWriter features a diverse library of base and upper cabinet types to choose from. Choose your construction method, and use the Story Stick to layout the location of your cabinets. Each cabinet can consist of one or more boxes and each box can be of a different cabinet type from the list shown below.
Each use of the Story Stick creates single cabinet with one or more boxes, and in the case of a face frame design, a single unified face frame will be drawn across all of the boxes as shown at the right. In the case of a frameless design, a single use of the Story Stick still creates a single cabinet containing one or more boxes, with all of the boxes grouped together under the same cabinet number. Combined with almost 400 parameters to control the options for drawing each of the cabinet types, the combinations are endless…
Scroll down to see an example of each of the base and upper cabinet types…
Base Cabinets
Upper Cabinets
Standard Base
- Zero, one or two doors; no drawers
- Zero to three shelves
Standard Upper
- Zero, one or two doors; no drawers
- Zero to three shelves
Standard Base, with Drawer(s)
- Zero, one, or two doors
- Zero to three shelves
- One or two drawers
Blind Corner Upper
- Zero, one or two doors; no drawers
- Zero to three shelves
- Extends into corner a user specified amount

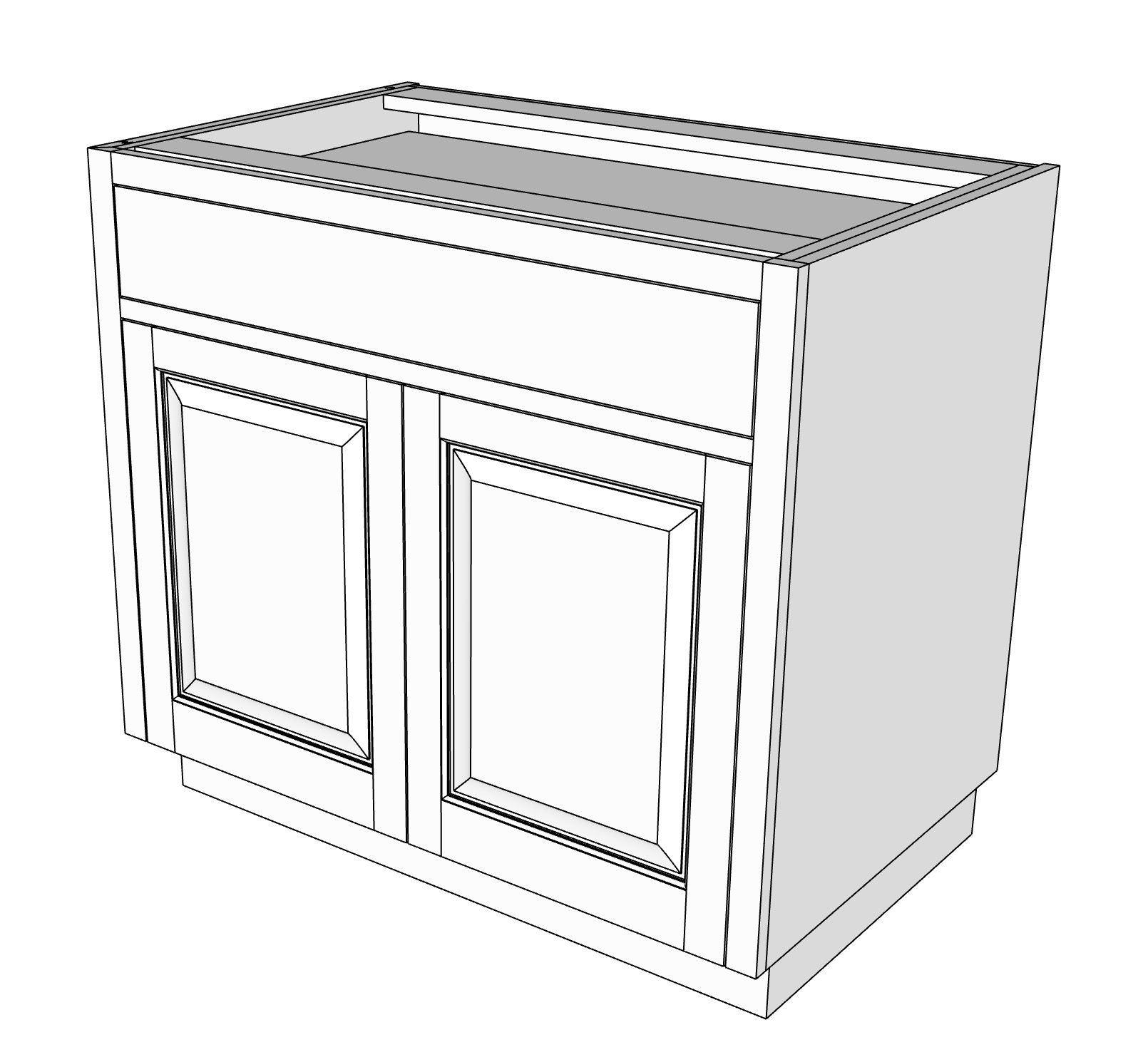

Sink Base
- Zero, one, or two doors
- One or two false drawer fronts

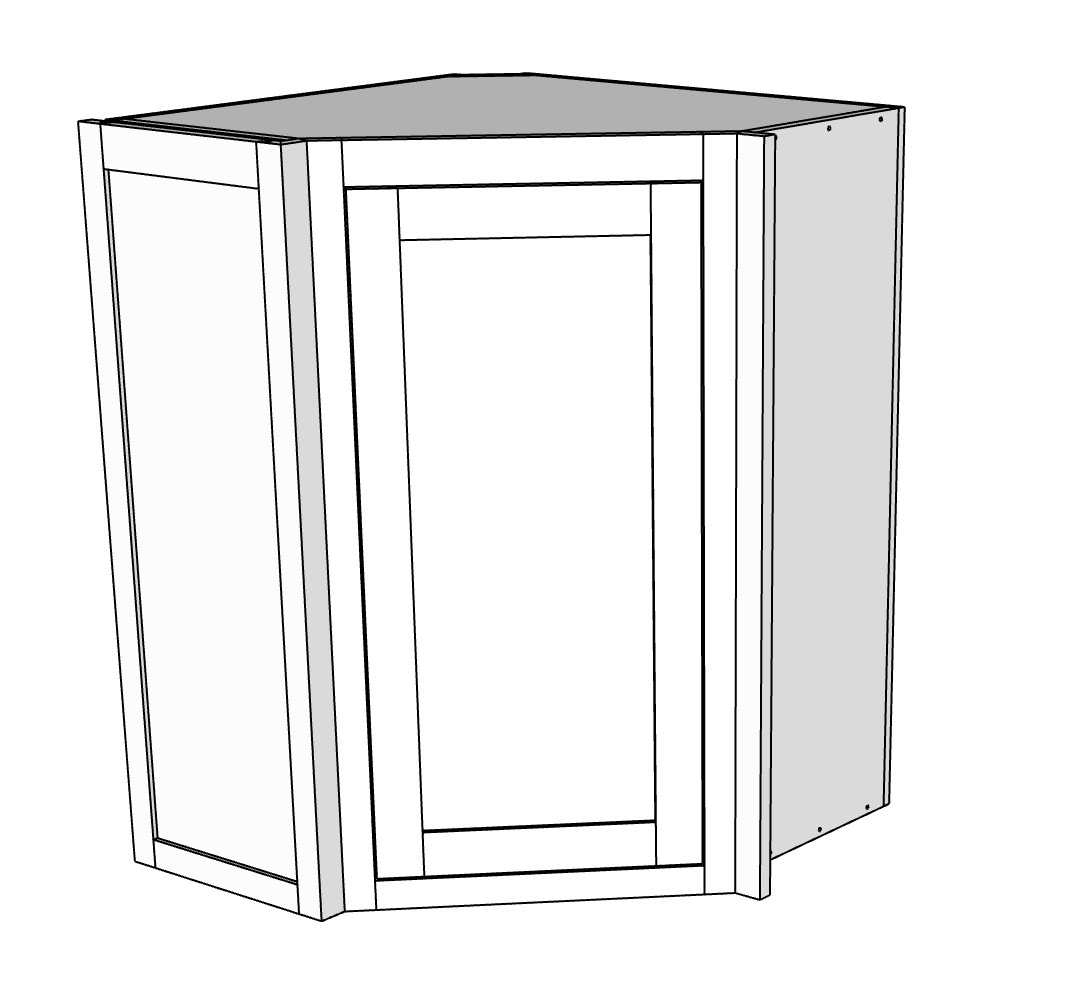

Diagonal Corner Upper
- Zero or one door; no drawers
- Zero to three shelves
Drawer Bank Base
- Two to four drawers; no doors
- All drawers are full width of the box

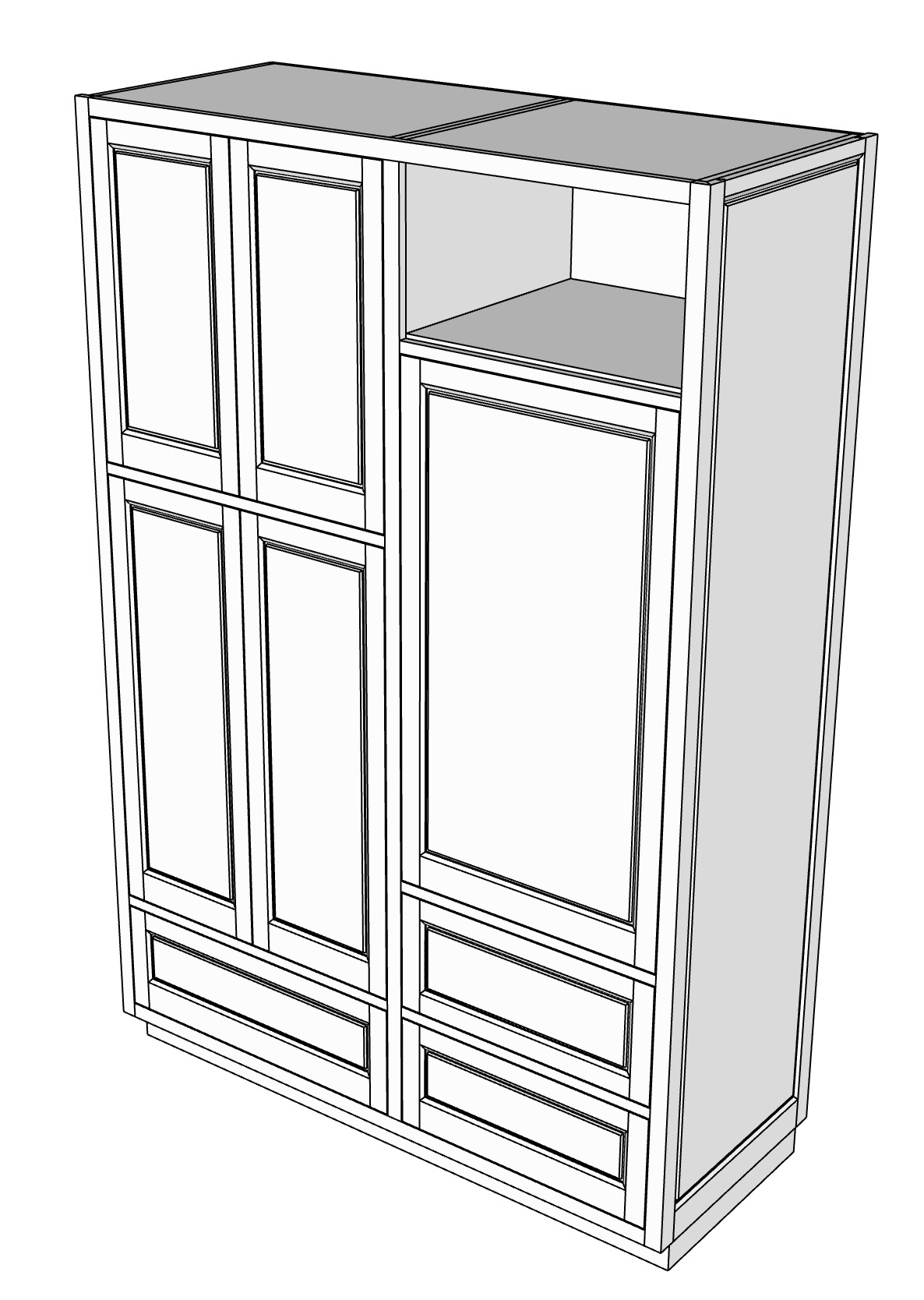

Refrigerator Cabinet
- Zero, one or two doors; no drawers
- Zero to three shelves
- User specifies height of refrigerator opening and upper cabinet
Drawer Combo Base
- Two to four rows of drawers; no doors
- Top row contains two drawers side by side of equal width
- Remaining drawers are full width of the box
Bi-Fold Upper (New in CabWriter 6)
- Zero doors, or a single door on each leg, hinged in the middle and on one side of one of the doors.
- Zero to three shelves
- Similar in construction to a lazy susan base

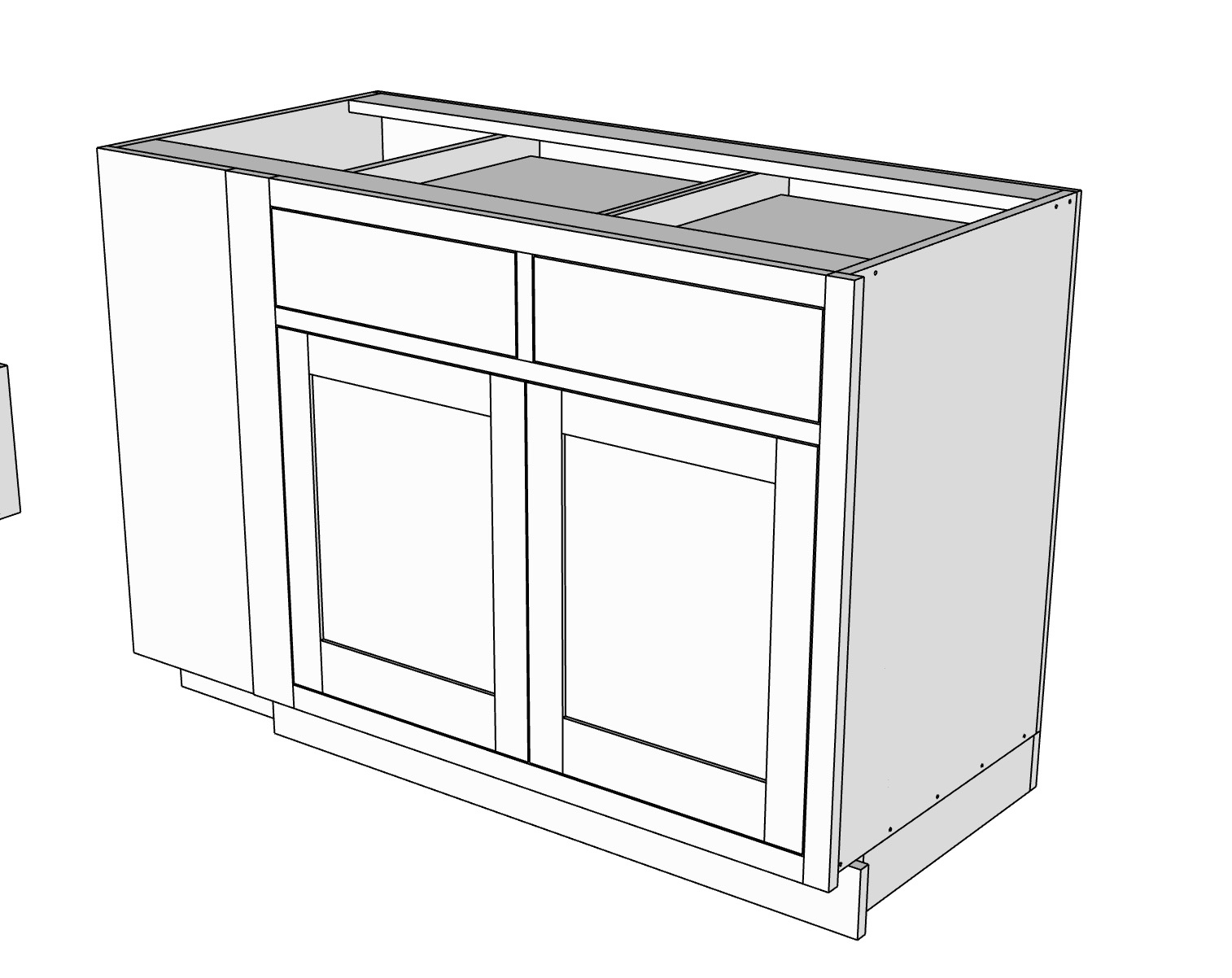

Blind Corner Base
- Zero, one or two doors
- Zero, one, or two drawers
- Zero to three shelves
- Extends into corner a user specified amount

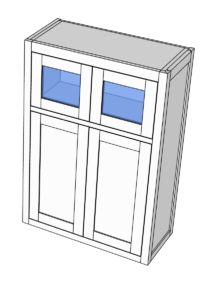

Stacked Upper (New in CabWriter 6)
- Any of the above cabinet styles can be drawn as a stacked upper; does not apply to Divided Upper
- User defines height of upper cabinet vs. lower
- Zero to three shelves in lower; no shelves in upper
Lazy Susan Base
- Zero doors, or a single door on each leg, hinged in the middle and on one side of one of the doors.
- No drawers
- Zero to three shelves
Divided Upper
- Flexible box allowing user to divide it into up to 15 vertical cavities.
- Division between cavities can be a fixed shelf, fixed stretcher, or just a FF rail.
- Automatically draw an optional one or two doors per cavity.
- Automatically draw an optional drawer in any cavity.
Diagonal Corner Base
- Zero or one door; no drawers
- Zero to three shelves
Divided Base
- Flexible box allowing user to divide it into up to 15 vertical cavities.
- Division between cavities can be a fixed shelf, fixed stretcher, or just a FF rail.
- Automatically draw an optional one or two doors per cavity.
- Automatically draw an optional drawer in any cavity.
